MSK protocol

Knee MRI

Routine knee MRI protocol for meniscal, ligament, tendon, marrow, chondral, fracture, infection, neoplasm, and soft tissue indications.

mskkneemeniscusligamenttendonmarrowchondromalaciaosteochondral fracturewithout contrastconditional contrast

For protocol planning and internal reference only. Follow institutional MRI safety screening, contrast, dosage, and GFR policies.

Decision supportContrast GuidanceDefault contrast approach and conditional indications.
No routine contrast guidance listed for this noncontrast protocol.
Acquisition listSequencesRequired and conditional series for the exam.

Scanner-specific parameters: Siemens Aera E11

LT KNEE 15 Ch

Mission 021 human decision: use one routine Knee map with LT KNEE 15 Ch as the canonical Siemens source.

Map status
approved for display
Sequences
7
Source
siemens-json/protocols/lt-knee-15-ch.json
SequencePlanePhaseRequiredNotesSequence Parameters
Localizer AxialaxialnoncontrastYes-
Localizer 3 PlaneAnynoncontrastYes-
Axial PD FSaxialnoncontrastYes-
Coronal PD FScoronalnoncontrastYes-
Coronal T1coronalnoncontrastYes-
Sagittal PD FSsagittalnoncontrastYes-
Sagittal T2 FSsagittalnoncontrastYes-
Axial T1 FS PreaxialprecontrastConditionalAcquire when contrast is indicated.-
InjectAnyconditionalConditionalPerform injection step when contrast is indicated.-
Axial T1 FS +CaxialpostcontrastConditionalAcquire when contrast is indicated.-
Coronal or Sagittal T1 FS +Ccoronal or sagittalpostcontrastConditionalAcquire when contrast is indicated.-
PositioningSlice PlanningPlane-specific planning instructions and guide images for technologists.

axial

Axial planning

  • Cover the entire knee from above the patella to the tibial tubercle.

Knee axial planning - sagittal prescription

axial

Source slide: 88. Focused embedded planning image from KNEE CENTER AT APEX / Axial.

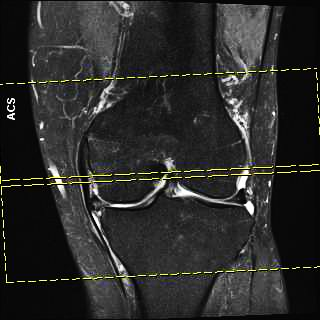

Knee axial planning - coronal prescription

axial

Source slide: 88. Focused embedded planning image from KNEE CENTER AT APEX / Axial.

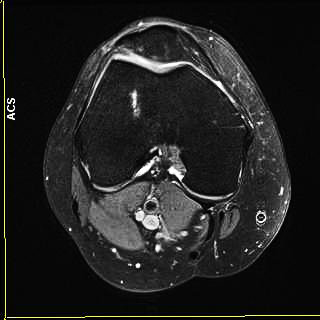

Knee axial planning - axial coverage

axial

Source slide: 88. Focused embedded planning image from KNEE CENTER AT APEX / Axial.

sagittal

Sagittal planning

  • Cover the entire knee from above the patella to the tibial tubercle.
  • Cover through the entire menisci.
  • Align perpendicular to the femoral condyles and the medial aspect of the medial condyle.

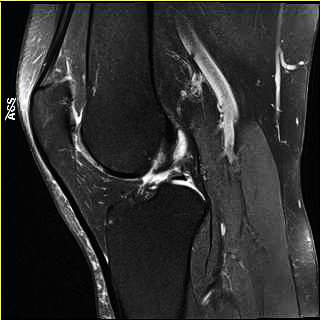

Knee sagittal planning - sagittal coverage

sagittal

Source slide: 90. Focused embedded planning image from KNEE / Sagittal.

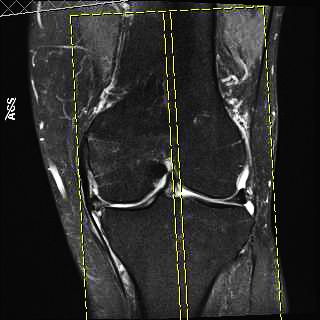

Knee sagittal planning - coronal coverage

sagittal

Source slide: 90. Focused embedded planning image from KNEE / Sagittal.

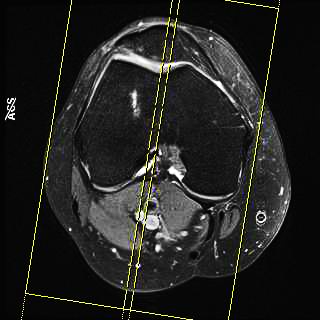

Knee sagittal planning - axial alignment

sagittal

Source slide: 90. Focused embedded planning image from KNEE / Sagittal.

coronal

Coronal planning

  • Cover the entire knee from above the patella to the tibial tubercle.
  • Cover through the entire menisci.
  • Align parallel to the femoral condyles.
  • Cover from the anterior patella to past the femoral condyles.

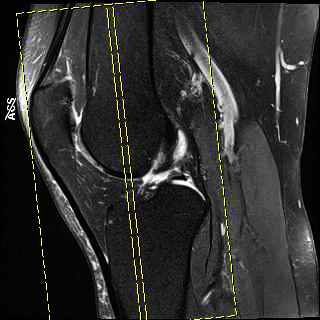

Knee coronal planning - sagittal alignment

coronal

Source slide: 89. Focused embedded planning image from KNEE / Coronal.

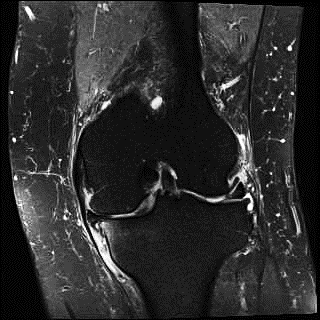

Knee coronal planning - coronal coverage

coronal

Source slide: 89. Focused embedded planning image from KNEE / Coronal.

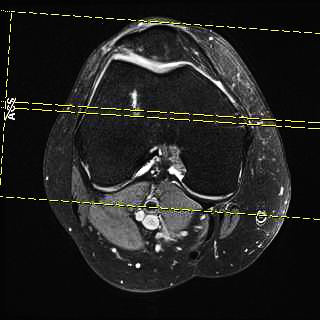

Knee coronal planning - axial alignment

coronal

Source slide: 89. Focused embedded planning image from KNEE / Coronal.

Anatomic extentCoverage RulesMinimum coverage expectations and alignment rules.

axial

Axial field of view

Cover the entire knee from above the patella to the tibial tubercle.

sagittal

Sagittal field of view

Cover the entire knee from above the patella to the tibial tubercle and through the entire menisci.

sagittal

Sagittal alignment

Align perpendicular to the femoral condyles and the medial aspect of the medial condyle.

coronal

Coronal field of view

Cover the entire knee from above the patella to the tibial tubercle, through the entire menisci, and from the anterior patella to past the femoral condyles.

coronal

Coronal alignment

Align parallel to the femoral condyles.

TechniqueSuggested Technique SpecificationsPlane-level vendor-neutral guidance from the source protocol.

axial

slice thickness
<= 4.0 mm
gap
<= 1.0 mm

sagittal

slice thickness
<= 4.0 mm
gap
<= 1.0 mm

coronal

slice thickness
<= 4.0 mm
gap
<= 1.0 mm
Conditional workflowSpecial SituationsAdjustments for contrast, hardware, and protocol-specific conditions.

Contrast indicated

  • Add axial T1 FS precontrast sequence.
  • Perform injection step.
  • Add axial T1 FS postcontrast sequence.
  • Add coronal or sagittal T1 FS postcontrast sequence.

Surgical hardware present

  • Document hardware-specific requirements if needed.
Future detailAdvancedSource-backed scanner, vendor, and site-specific notes when available.

Advanced technical details, scanner variants, and planning guide assets can appear here as protocol data expands.
