sagittal
Sagittal planning
- Cover from the inferior cortex of the fifth metatarsal to mid-calf.
- Angle perpendicular to the long axis of the tendon.
Ankle sagittal planning

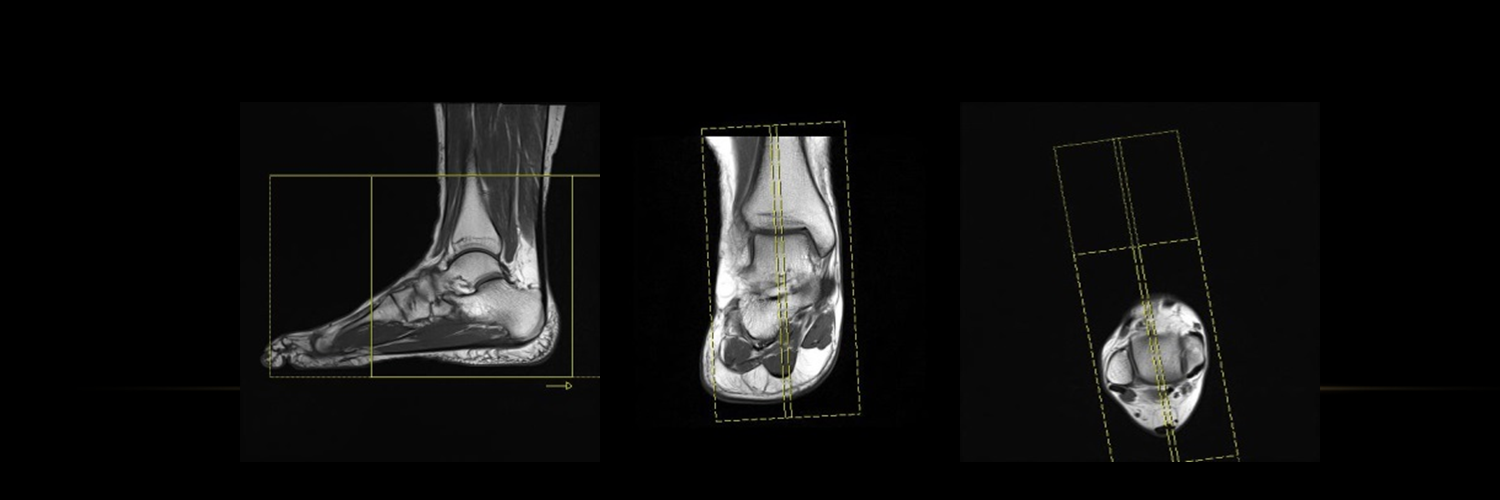

sagittalSource slide: 93. Cropped planning image from ANKLE / Sagittal.
MSK protocol
Ankle MRI
Ankle MRI for plantar fasciitis, bone and soft tissue infection or neoplasm, avascular necrosis, sinus tarsi syndrome, and congenital and developmental conditions. Standard three-plane protocol with sagittal coverage from the fifth metatarsal to mid-calf, angled perpendicular to the long axis of the tendon. Routinely performed without contrast.
mskanklefootplantar fasciitisavascular necrosissinus tarsiwithout contrast
For protocol planning and internal reference only. Follow institutional MRI safety screening, contrast, dosage, and GFR policies.
Decision supportContrast GuidanceDefault contrast approach and conditional indications.
Contrast indications
No routine contrast indications listed for this noncontrast protocol.
Dose notes
- Follow department policy regarding contrast administration and dosing.
Acquisition listSequencesRequired and conditional series for the exam.
| Sequence | Plane | Phase | Required | Notes |
|---|---|---|---|---|
| Localizer Axial | axial | noncontrast | Yes | - |
| Localizer 3 Plane | Any | noncontrast | Yes | - |
| Axial T2 FS | axial | noncontrast | Yes | - |
| Axial T1 | axial | noncontrast | Yes | - |
| Coronal T2 FS | coronal | noncontrast | Yes | - |
| Coronal T1 | coronal | noncontrast | Yes | - |
| Sagittal T2 FS | sagittal | noncontrast | Yes | - |
| Sagittal T1 | sagittal | noncontrast | Yes | - |
| Axial T1 FS Pre | axial | precontrast | Conditional | - |
| Inject | Any | conditional | Conditional | - |
| Axial T1 FS +C | axial | postcontrast | Conditional | - |
| Sagittal T1 FS +C | sagittal | postcontrast | Conditional | - |
PositioningSlice PlanningPlane-specific planning instructions and guide images for technologists.
axial
Axial planning
- Cover from the inferior cortex of the fifth metatarsal upward as far as possible.
- Align perpendicular to the tibia and fibula (sagittal view).
- Cover the talofibular joint through the calcaneus.
Ankle axial planning

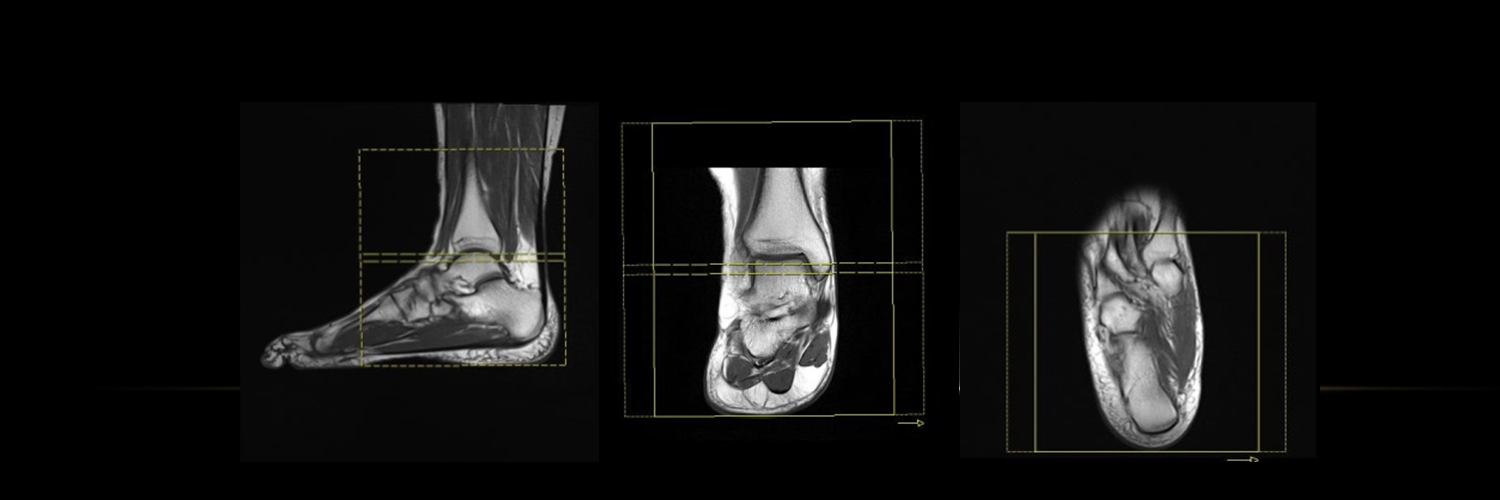

axialSource slide: 91. Cropped planning image from ANKLE CENTER AT MORTISE JOINT / Axial.
coronal
Coronal planning
- Cover the plantar (inferior) soft tissues.
- Align parallel to the tibia.
- Cover from the Achilles tendon to the base of the metatarsals.
Ankle coronal planning

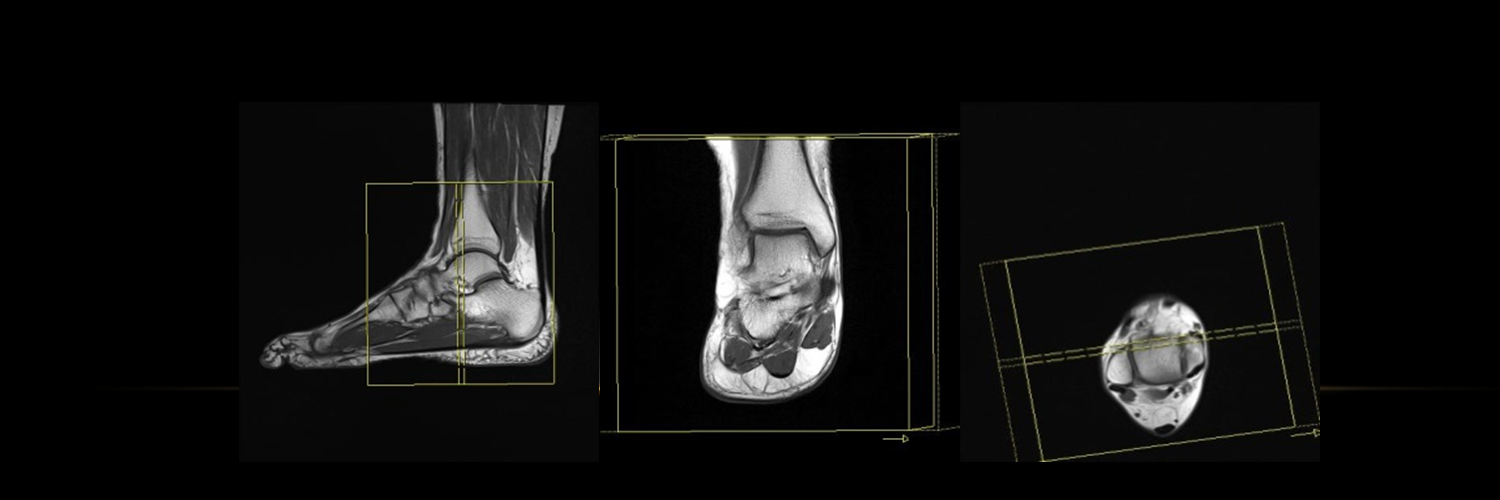

coronalSource slide: 92. Cropped planning image from ANKLE / Coronal.
Anatomic extentCoverage RulesMinimum coverage expectations and alignment rules.
sagittal
Sagittal field of view
Inferior cortex of the fifth metatarsal to mid-calf, angled perpendicular to the long axis of the tendon.
axial
Axial field of view
Inferior cortex of the fifth metatarsal, covering upward as far as possible. Cover the talofibular joint through the calcaneus.
coronal
Coronal field of view
Plantar soft tissues. Aligned parallel to the tibia. Achilles tendon to base of metatarsals.
TechniqueSuggested Technique SpecificationsPlane-level vendor-neutral guidance from the source protocol.
sagittal
- slice thickness
- <= 3.0 mm
- gap
- <= 0.5 mm
axial
- slice thickness
- <= 4.0 mm
- gap
- <= 1.0 mm
coronal
- slice thickness
- <= 4.0 mm
- gap
- <= 1.0 mm
Conditional workflowSpecial SituationsAdjustments for contrast, hardware, and protocol-specific conditions.
Surgical hardware present
- Add Axial STIR sequence.
- Add Coronal STIR sequence.
- Add Sagittal STIR sequence.
Future detailAdvancedSource-backed scanner, vendor, and site-specific notes when available.
Advanced technical details, scanner variants, and planning guide assets can appear here as protocol data expands.
